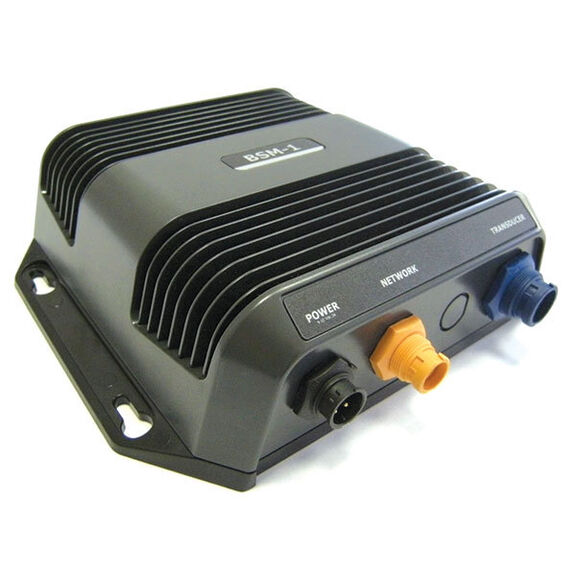

BSM-1 Broadband Sounder Module
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
Raising the bar in fishfinding technology, the BSM-1 Broadband Sounder Module delivers peerless echo clarity and the highest underwater definition ever achieved. High resolution linear receiver with “Optimizer” technology provides superior clarity in shallow and mid water. Tri-frequency capability yields optimal water column performance.
Exceptionally low power consumption with efficient long pulses to make the perfect “low-noise” sonar. Simrad Broadband Sounders provide outstanding capability to track bottom and see structure in deep offshore terrain and canyons over 3,000 feet! 2X and 4X High Speed Scrolling and lightning-fast redraws. Ethernet connectivity and compatible with existing installations using a simple transducer adapter cable. Also supports 600W or 1000W transducers.
- Dimensions: 7 1/8"W x 2 3/16"H x 8"D
- Frequency: 50/83/200kHz
- Transmit Power: 250W (RMS)
- Max. Depth: 5,000'
- Networking: High-speed Ethernet-based system, includes Ethernet adapter cable (Navico Yellow to RJ45)
- Transducer: Sold separately
- Waterproof Rating: IPX7
What You’ll Need
The BSM-1 operates either 83/200 kHz or 50/200kHz transducers, sold separately. Depending on the style of the transducer, you’ll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| BB TRANSDUCERS BLUE CONNECTOR | ||||
|---|---|---|---|---|
| Transducer Type | Reading(s) | Frequency | Material | Model |
| OB/IB Shallow Water w/Temp | Depth/Temperature | 83/200 kHz | Nylon | 8803595 |
| OB/IB Deep Water w/Temp | Depth/Temperature | 50/200 kHz | Nylon | 8803603 |
| OB/IB Deep Water w/Speed & Temp | Depth/Speed/ Temperature |
50/200 kHz | Plastic | 14273866 |
| IB Engines; Shallow or Deep Water w/Temp | Depth/Temperature | 50/200 kHz | Bronze | 11498805 |
| IB Engines; Shallow or Deep Water w/Temp | Depth/Temperature | 50/200 kHz | Plastic | 11498375 |
| Trolling Motor or In-Hull Mount; Shallow Water w/Temp | Depth/Temperature | 83/200 kHz | Nylon | 10856003 |
| Inboard Engines; Shallow or Deep Water w/Temp (Big Boats) | Depth/Temperature | 50/200 kHz | Bronze | 14274690 |
| Larger Boats; 1KW Deep Water w/Temp | Depth/Temperature | 50/200 kHz | Bronze | 11259314 |
| Outboard or Inboard-Outboard; Deep Water w/Temp | Depth/Temperature | 50/200 kHz | Plastic | 14274203 |
|
|
||||
What You May Want to Add
| Compatible Cables | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| ST-TBL Speed Temp Sensor | 14272777 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
