SEAFLO 300A 4-Position Dual Battery Selector Switch Black
The SEAFLO SFCBS-300-402 dual battery selector switch is designed for marine, RV, and electrical system applications requiring reliable battery management and power isolation. This 4-position manual rotary switch supports 12V, 24V, and 32V DC systems and allows selection between Battery 1, Battery 2, BOTH, or OFF positions for flexible power control and emergency parallel battery operation. The switch is rated for 300A continuous duty, 500A intermittent duty, and 900A cranking capacity. Built with corrosion-resistant components and tin-plated copper studs, it meets UL 1500, SAE J1171, ABYC, CE, RoHS, and ISO 8846 standards. The compact housing supports rear panel, front panel, or surface mounting installations. Includes battery selector switch only.
Key Features
- 4-Position Switching - Select between Battery 1, Battery 2, BOTH, or OFF for flexible battery management and system isolation.
- High Current Capacity - Handles 300A continuous duty, 500A intermittent duty, and 900A cranking loads for demanding marine and RV applications.
- Multi-Voltage Compatibility - Designed for use with 12V, 24V, and 32V DC electrical systems.

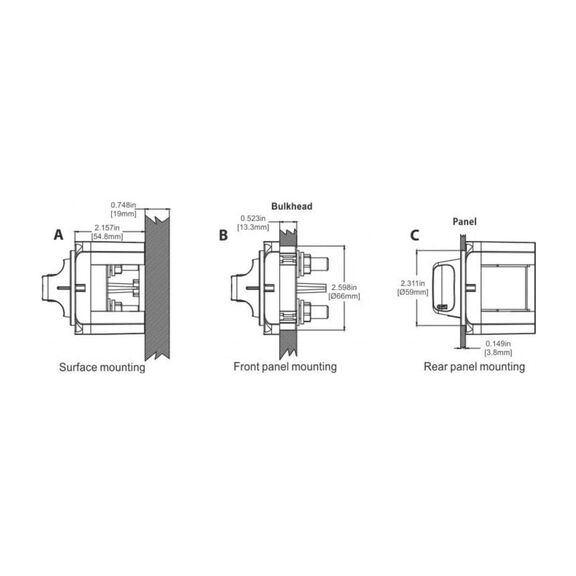

- Flexible Mounting Options - Supports rear panel, front panel, or surface mounting to fit a wide range of installation requirements.
- Corrosion-Resistant Construction - Features tin-plated copper studs and an IP66-rated housing for durability in marine environments.
