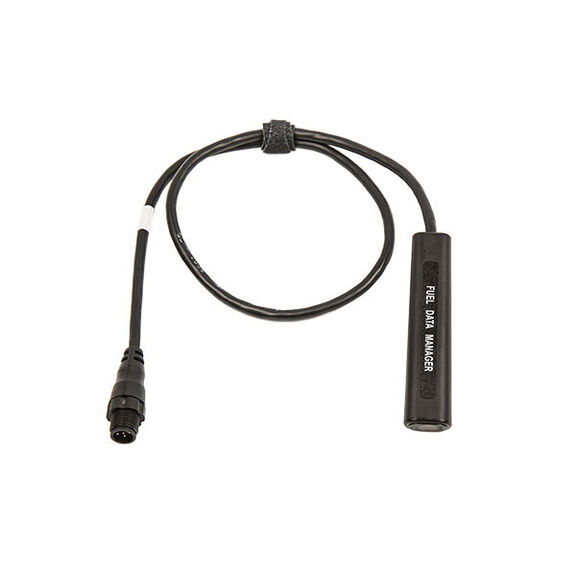

Fuel Data Manager
Model #
16247082
Mfg #
000-11522-001
$119.00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Fuel Data Manager monitors fuel rates from multiple engines transmitting through a single gateway.
This fuel data manager stores data for fuel used, trip fuel used, and seasonal fuel used from a compatible engine or engine interface connected to your NMEA 2000 network. A single fuel data manager can support up to three engines. For installations with more than three engines, use a second fuel data manager sensor.
Key Features
- Replaces EP-85
- Cable Length: 1 1/2' (.5 m)
- Connects to network with NMEA 2000 engines
- Accumulates date on fuel used from the fuel flow data available from compatible NMEA 2000 engines or engine interfaces
- Supports up to three engines per sensor
- Can only be configured by compatible Lowrance or Simrad displays and gauges
- Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines, and accumulates Fuel Rate into Fuel Used
- Outputs: Seasonal/Trip/Total Fuel Used
- Will report accurate Vessel Fuel Remaining if MFD Fuel screen is maintained at every refuel
- Additional Fuel Data Managers can be added for more engines
- Will monitor fuel rates from multiple engines transmitting through a single gateway
PGNs Transmitted
- 59392 – ISO Acknowledgment
- 60928 – ISO Address Claim
- 126996 – Product Information
What's in the Box
- Fuel Data Manager
- NMEA 2000 T-Joiner
Type
Accessories
Sonar
Down Imaging
,
Multi Frequency
Type
Accessories
Warranty
One Year
