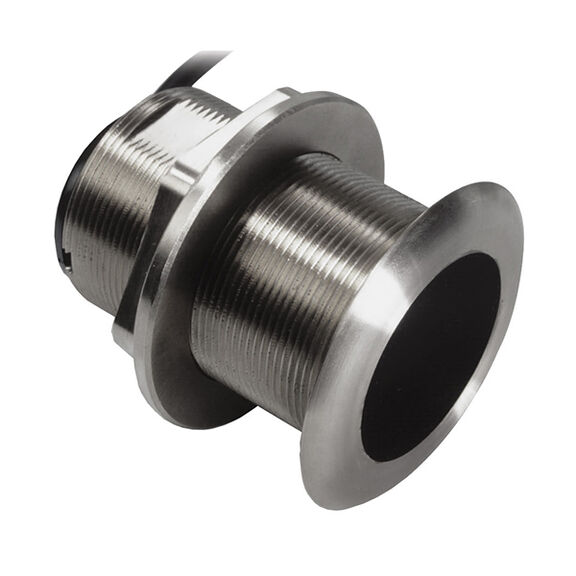

xSonic SS60 0° Tilt Thru-Hull Dual Frequency Transducer
Engineered for center-console and trailered boats.
The xSonic SS60 is a stainless-steel, 0° tilt, thru-hull 50/200kHz Broadband transducer. Ideal for smaller sportfishing and commercial vessels up to 25' in length, the SS60 is best suited for fishing in depths of less than 3000 ft. The 0° tilt is ideal flat-bottomed boats with up to 8° hull deadrise.
The SS60 is the stainless steel version of Airmar's popular B60 bronze tilted element transducer. SS60 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in deadrise compensation. The resulting vertical beam returns crisp echoes for more-accurate depth readings.
The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull. The SS60 is currently being used by the US Coast Guard.
Key Features
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No effect on your boats running performance
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
- Boat Size: Up to 25’
- Fixed 0° tilted version for 0° to 7° hull deadrise
Specifications
- Style: Thru-hull
- Cable Length: 30' with 9-Pin connector
- Monitors: Depth and Temperature
- Material: Stainless steel
- Transmit Power: 600W (RMS)
- Frequency: 50/200 kHz
- Max. Depth: 800'-1.200'
- Acoustic Window Material: Urethane
- Compatible Hull Materials: Fiberglass or wood
- Hole Diameter for Installation: 2"
- Beamwidths: 45°/12°
- Hull Deadrise Angle: 0° compensation for hull deadrises up to 7°
