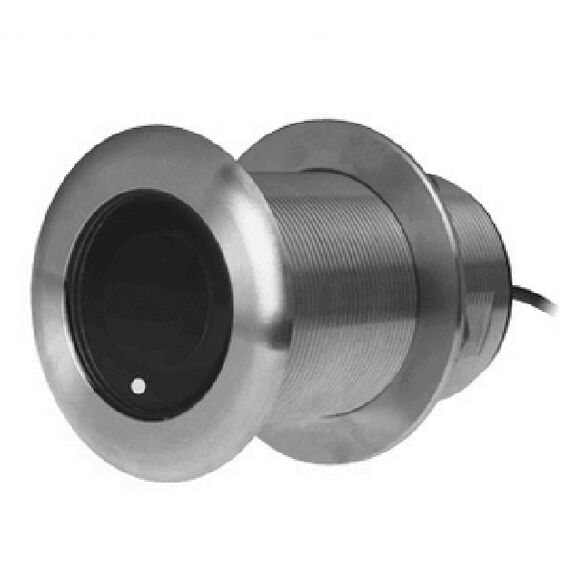

xSonic SS75M 12° Tilt Thru-Hull Medium CHIRP Transducer
Model #
18259267
Mfg #
000-13909-001
$949.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
xSonic SS75M 12° Tilt Thru-Hull Medium CHIRP Transducer
Model #
18259267
Mfg #
000-13909-001
$949.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Medium frequency CHIRP thru-hull with 50kHz of total bandwidth delivers great performance for smaller fishing boats.
The xSonic SS75M is a stainless steel thru-hull, tilted element medium- frequency (80-130 kHz), depth and temperature CHIRP transducer. The ceramic element is tilted 12° for built-in deadrise compensation, so it is a good fit for boats with a 12° to 19° hull deadrise, giving excellent echo returns for accurate depth readings.
Key Features
- Same elements and performance as the B765M offered in a low-profile housing
- Depth and fast-response water temperature sensor
- CHIRPS from 80kHz to 130kHz with 24° to 16° beamwidth
- 50kHz of total bandwidth from one transducer
- Covers popular fishing frequencies 88 and 107kHz plus everything else in the bandwidth
- All the advantages of the larger thru-hull Chirp transducers, but is suitable for smaller boats
- Stainless steel transducer housing
- Boat Size: Up to 25'
- Hull Type: Steel or aluminum
Specifications
- Style: Thru-hull
- Cable Length: 33'
- Monitors: Depth and temperature
- Hull Deadrise Range: 12° to 19°
- Material: Stainless steel
- Acoustic Window: Urethane
- Connector: 9-pin xSonic
- Transmit Power: 600W (RMS)
- Frequency Range: Medium CHIRP (80-130kHz)
- Max. Depth: 900'
- Beamwidth: 24° to 16°
Type
Thru-Hull
Beam
24 to 16 Degrees Medium CHIRP
Deadrise Angle
12 to 19 Degree
Frequency
85kHz-135kHz Medium CHIRP
Material
Stainless Steel
Maximum Depth
1500 Feet Medium CHIRP
Mount Type
Thru-Hull Flush
Sonar
Single Channel CHIRP
Transmit Power
600 Watts
Type
Thru-Hull
