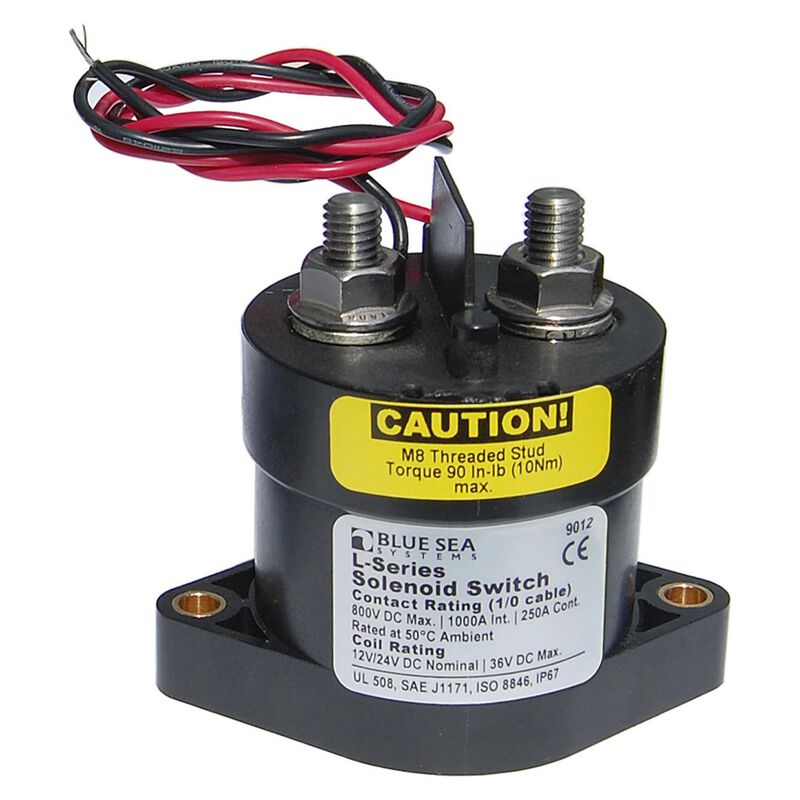

12/24V DC L-Series Solenoid Switch with Coil Economizer

12/24V DC L-Series Solenoid Switch with Coil Economizer

4.3 out of 5 Customer Rating
-
+
Availability
  • Back Order
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

Protect Your Purchase

Add extra coverage from the date of purchase beyond the manufacturer’s warranty. Details

What's Covered?

PLUS adds up to 2 more years of coverage beyond the Manufacturer's Warranty and offers extra coverage from the date of purchase throughout the extended term. PLUS includes:

  • Wear and Tear Coverage
  • Power Surge Protection
  • Exchange for products under $400
  • Onboard service on products over $750
  • Up to 5 years of total coverage

Your PLUS plan goes into effect with your purchase ‐ no registration required. Purchase your PLUS plan online, in stores or by calling 1 (800) 262-8464.

$39.49
$28.44
$220.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 2012425 Mfg # 9012
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

Control high amperage switching tasks without having to run heavy cable throughout your boat

Solenoid switches are a great way to reduce long heavy gauge cable runs and centralize switching operations. Use them to activate an engine starting circuit, as a battery switch, or any other application requiring high amperage.

Blue Sea Systems designed the L-Series solenoid switch for the marine environment. Contacts are hermetically sealed and vaporproof so it can be installed anywhere aboard you boat. This solenoid switch can handle up to 450A loads and be controlled by a low amperage ON-OFF switch mounted in a location of your choice using as little as  20AWG wire. The time and headache of mapping a path for a 2/0 AWG cable to run through your boat is eliminated; so is the weight and expense a heavy cable adds.

Key Features

  • Capable of switching up to 450A loads (using two 2/0 AWG cables)
  • Activated by remote switch (not included) mounted anywhere
  • Control circuit connection requires as little as 20AWG (depending on length of wire run)
  • Ignition protected and can be mounted in engine rooms of gasoline power boats
  • Contacts are hermetically sealed and vaporproof to stand up to marine use
  • Small footprint and can be installed close to circuit being switched to reduce heavy gauge cable runs
  • Compatible with 12V or 24V systems
  • Integrated coil minimizes heating and amperage draw
  • Lifetime warranty

Specifications

  • Circuit Control Connection: 20 AWG tinned wire
  • Nominal Voltage: 12V or 24V
  • Coil Function: Normally open
  • Operating Amperage Current: 6A (while changing state)
  • Continuous Rating: 250V-450V (cable size dependent)
  • Intermittent Rating: 275A-600A (cable size dependent)
  • Cranking Rating (30 sec): 1000A DC (with 1/0 cable)
  • Input Voltage: 9V-36V
  • Terminal Stud Size: 5/16"
  • Approvals: CE, SAE J1171 marine, UL 508, IP67

Wiring Diagram

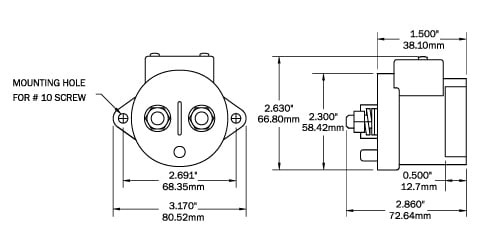

Dimensional Drawing

Amperage 0.13 Amps
Cold Cranking Amps 1000 Amps
Color Black
Dimensions 5/16" Terminal Studs
ISO Approved CE , IP67 , UL 508
Type Switches
Voltage 12 Volts/24 Volts DC
Warranty Five Years
