BLUE SEA SYSTEMS
DC Digital Multi-Function Meter with Alarm
Qty: 1
Delivery Dates
1 Delivered by Jun 23
Monitor your electrical system with a compact easy to read digital meter
Monitoring your electrical system keeps it functioning to its full potential, increases the lifespan of your batteries and alerts you to changes before they become issues. Blue Sea Systems provides a compact way to get electrical information in an easy to read LED display. Choose the right meter to provide just the information you need to confirm your systems are functioning. Available in single function displays to show AC voltage, DC voltage, current, or frequency. Install several single function meters to monitor formation simultaneously; or select a multimeter and page through the information using push button keys on the face.

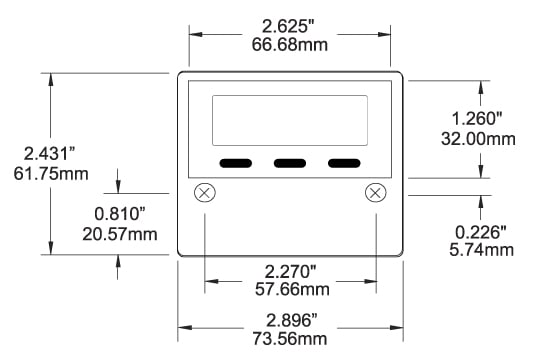

Installation is made easy by several mounting options. Surface mount these meters anywhere a 2" hole can be drilled and secure the display using a lock nut. These meters are compatible Blue Sea Systems breaker panels and can replace analog meters to add function and improve visibly. If an existing breaker panel is not available or does not have a meter cutout, the same look can be achieved using a dedicated mounting panel (model 288136).
Each meter offers three levels of brightness making the red LED digital display even easier on your eyes while using at night. Multimeters and single function meters with alarms are programmable to alert you to changes in the system using audible indicators. All meters have a sleep mode to help conserve power, some feature a programmable option that will automatically enter sleep mode after a set time period. Each display is spashproof from the front and will handle moderate exposure. These compact meters are ideal for staying on top your electrical system.
Key Features
| Specifications | 8235 | 8236 | 8237 | 8239 | 8247 | 8248 | 8251 |
|---|---|---|---|---|---|---|---|
| AC DC | DC | DC | AC | AC | AC | DC | DC |
| Meter | Voltage | Current | Voltage | Frequency | Current, Freequency, Power, Voltage | Voltage, Current | Voltage |
| Function | 0 to 60V | to 500A | 80 to 270V | 40 to 90Hz | See single function display specs | See single function display specs | 0-60V |
| Alarms | None | High and low voltage | None | None | High and low voltage, High current | High and low voltage | High and low voltage |
| Display Character Size | 0.5625in | 0.5625in | 0.5625in | 0.5625in | 0.5625in | 0.5625in | 0.5625in |
| Input Voltage | 7-60V DC | 8-32V DC | 80-249V | 80-249V | 80-249V | 7-60V DC | 7-60V DC |
| Maximum Power Consumption | 1 Watt | 1 Watt | 1 Watt | 1 Watt | 1 Watt | 1 Watt | 1 Watt |
| Minimum Power Consumption | 0.60 Watt | 0.60 Watt | 0.60 Watt | 0.60 Watt | 0.60 Watt | 0.60 Watt | 0.60 Watt |
| Sleep Mode | Manual | Manual | Manual | Manual | Programmable | Programmable | Programmable |
by PowerReviews
Verified Buyer
Comments about DC Digital Multi-Function Meter with Alarm by Blue Sea Systems | Marine Electrical at West Marine
Wrong item for my boat. Returned for 8247.
Comments about DC Digital Voltmeter, 0 to 60V DC by Blue Sea Systems | Marine Electrical at West Marine
nice and bright and in your face ! thats what you need for a monitor , easy to use and never had a return ! still see original ones fitted 15 plus years ago and still working great , top feature is low/high voltage alarm ! thats what most sailors need ,not battery fuel gauge type with time to go features where most boat owners dont understand and dont want to muck around with peukerts exponent laws to keep the readout true !
Verified Reviewer
Comments about DC Digital Voltmeter, 0 to 60V DC by Blue Sea Systems | Marine Electrical at West Marine
I installed this unit over a year ago and really like being able to see what the input voltage is at various marinas. Also, it gives me real time look at power consumption in either amps/wattage. I leave it on the mode that cycles through the displays: Voltage, Freq, Amps, Wattage. Easy to read also. I would recommend this product or any other Blue Sea for that matter.
Comments about DC Digital Voltmeter, 0 to 60V DC by Blue Sea Systems | Marine Electrical at West Marine
It sat in the box for 5 years befor it was installed After that it only worked for one month
