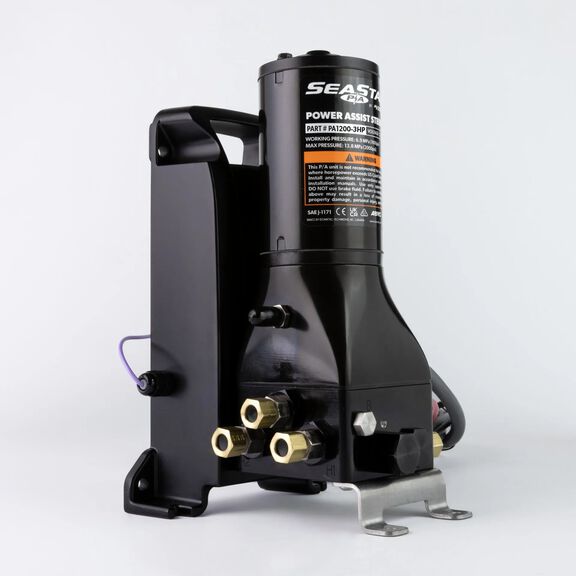

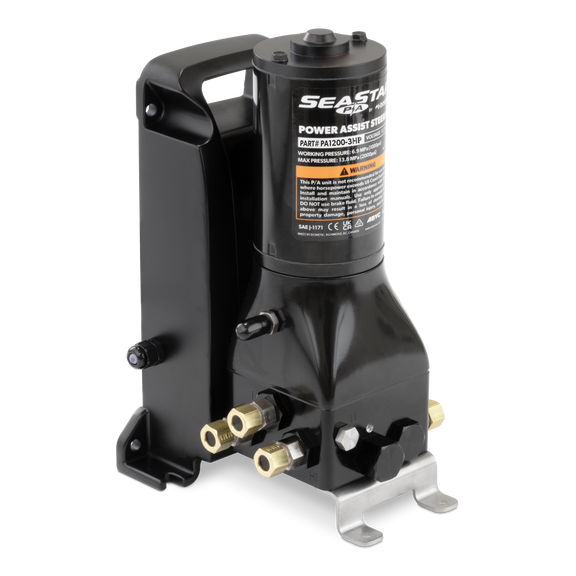

Dometic SeaStar Power Assist PA1200-3HP

Dometic SeaStar Power Assist

The Dometic SeaStar Power Assist PA1200-3HP is an electronically controlled gear pump added to the hydraulic steering circuit between the helm pump and steering cylinder. The high-pressure (HP) model is specifically engineered for all duo-prop Suzuki outboards and select vessels with very high horsepower demands. Fluid circulated by the helm pump enters the power assist unit and is directed through the gear pump to the steering cylinder or cylinders. The helm serves as the control element for both speed and direction, while the power assist serves as the working element that adds force to the steering fluid. The gear pump's speed is proportional to helm movement — the faster the wheel is turned, the faster the gear pump runs. When steering is not in use, the power assist remains stopped and draws only minimal standby power. The PA1200-3HP features updated -3 ORB fittings and internal improvements for enhanced reliability, and directly replaces the previous PA1200-2HP model (as of February 2025). Suitable for boats 200 hp and above, this unit makes steering heavy, high-powered vessels as comfortable and effortless as driving a car.

Key Features

• Dramatically reduces steering effort in heavy or high-torque applications
• Electronically controlled gear pump with proportional speed response to helm input
• Automatically recognizes system voltage — 12V or 24V
• Specifically designed for duo-prop Suzuki outboards and high-horsepower vessels

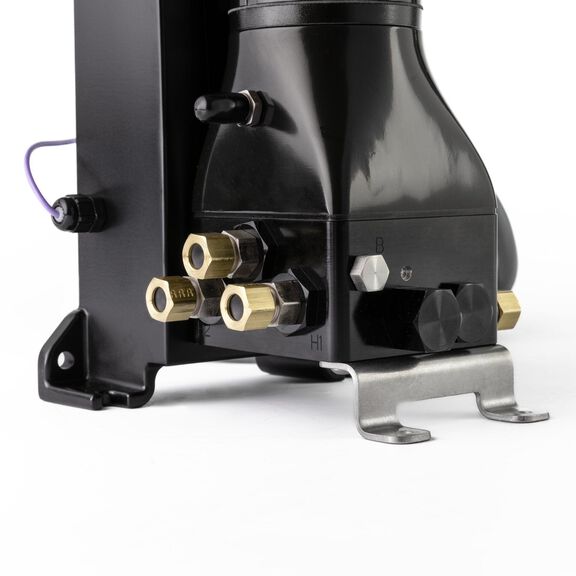

• -3 ORB fittings for secure hydraulic connections
• Easy installation — simple add-on to existing SeaStar manual steering system; suitable for wall or floor mount

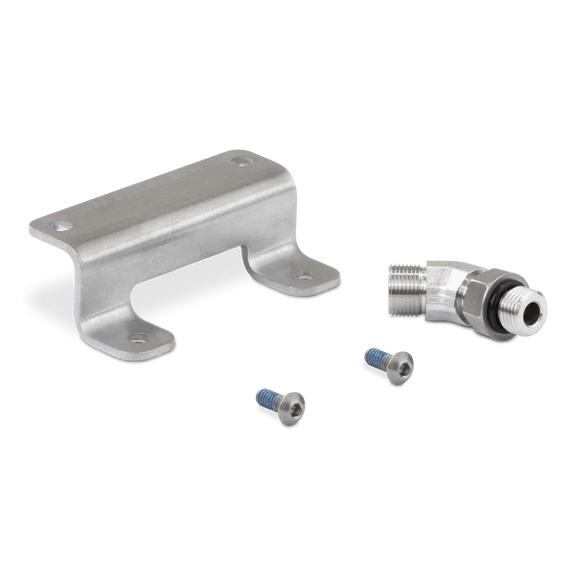

• Mounting bracket included

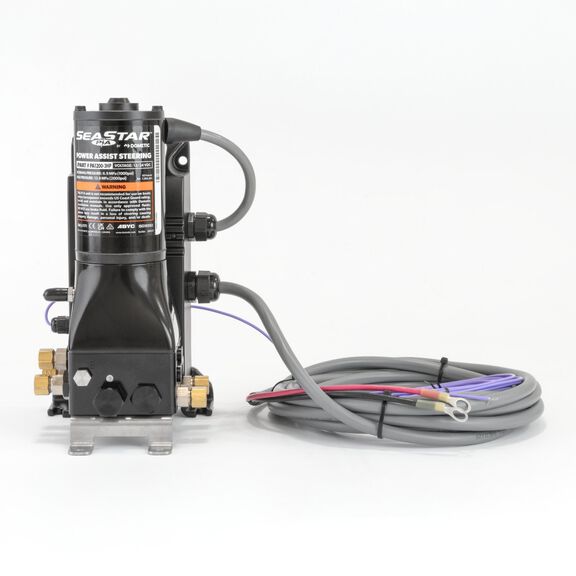

• 15-foot wiring harness included
• Compatible with Dometic SeaStar Power Purge system
• Compatible with marine autopilots
• Number of turns lock-to-lock remains constant
• Draws only standby power when not steering
• ABYC, CE, NMMA, and ISO 10592 approved
• 2-year limited warranty
