16mm Forkhead Block
Model #
6577308
Mfg #
376
$28.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

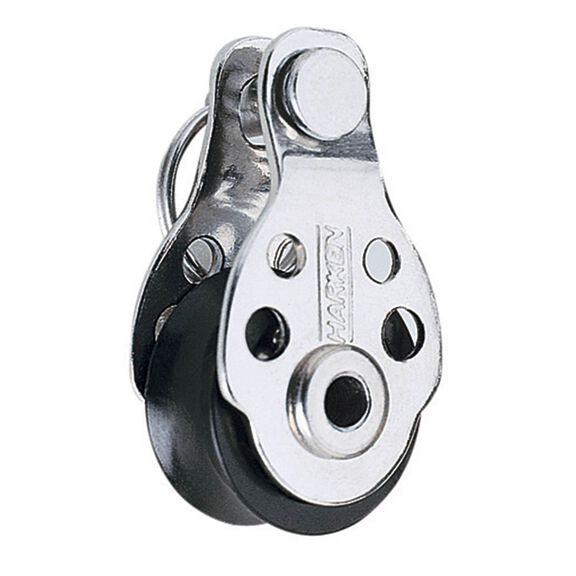

Harken 16mm Forkhead Block fits on a non-removable eye strap, with its removable pin.
16m Blocks have a lightweight design and a unique patented bearing system which uses stainless steel balls in a captive, grooved race. Very high working loads in an extremely lightweight block, with the best strength-to-weight ratios around. The Forkhead Block is often used on Cunningham and outhaul systems on Laser Class dinghies.
Key Features
- Very high working loads in an extremely lightweight block
- Lightweight design and a unique patented bearing system
- Stainless steel ball bearings
- Polished 316 stainless steel top strap
- Sheave Diameter: 5/8" (16 mm)
- Max. Line Diameter: 7/32" (5 mm)
- Max. Working Load (MWL): 250 lb. (113 kg)
- Breaking Load: 1200 lb. (544 kg)
- Weight: .38 oz. (11 g)
- Length: 1 1/8" (29 mm)
Becket
No Becket
Diameter
3/16 Inch or 5 mm
Direction
Any
Integral Cleat
No Integral Cleat
Length
1 1/8 Inches
Mount Type
Side Shackle
Ratchet
Non Ratcheting
Safe Working Load
250 Pounds
Type
Single
Weight
.38 Ounces
Sheave Diameter
16 mm
