22mm Athwartships Loop Car

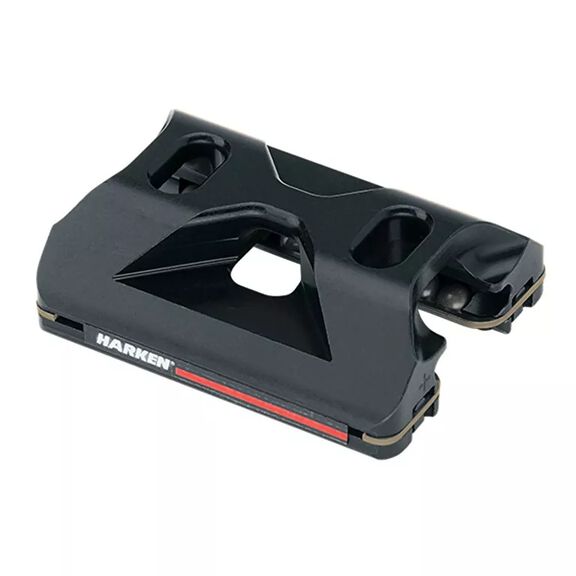

Harken 22mm Athwartships Loop Car

The Harken 22mm Athwartships Loop Car is a robust, soft-attach traveler car engineered specifically for small boat sailing. Its athwartship attachment holes are designed to keep up/down control lines positioned as low to the car as possible, minimizing interference and improving line management across the traveler system.

This versatile car serves multiple functions aboard small boats. It can be used as a mainsheet traveler car when mainsheet blocks need to be oriented 90 degrees to the standard mounting arrangement on part 2703. It is also suitable for use as a conventional traveler car in a variety of setups. The track compatible with these cars is available in both low-beam and high-beam configurations and comes predrilled with holes for mounting fasteners, simplifying installation.

Built to withstand demanding conditions, the 2768 offers a maximum working load of 386 kg (850 lb) and a breaking load of 1134 kg (2500 lb), providing a generous safety margin for competitive and performance sailing applications. At 104 g (4 oz), it balances strength with low weight. The car body measures 73 mm in length, 57 mm in width, and 24 mm in height, and is rated for a minimum curved track radius of 1.07 m (3.5 ft).

Key Features

• Soft-attach loop car design with athwartship attachment holes
• Keeps up/down control lines low to the car for clean rigging
• Can be used as a mainsheet traveler car with 90-degree block orientation relative to part 2703
• Suitable for use as a standard traveler
• Compatible with low-beam and high-beam track configurations
• Track is predrilled for mounting fasteners
• Maximum working load: 386 kg (850 lb)
• Breaking load: 1134 kg (2500 lb)
• Lightweight construction at 104 g (4 oz)
• Minimum curved track radius: 1.07 m (3.5 ft)
