22mm High-Load 1250 Car — Fixed Sheaves, Cam Cleats

Harken 22mm High-Load 1250 Car — Fixed Sheaves, Cam Cleats

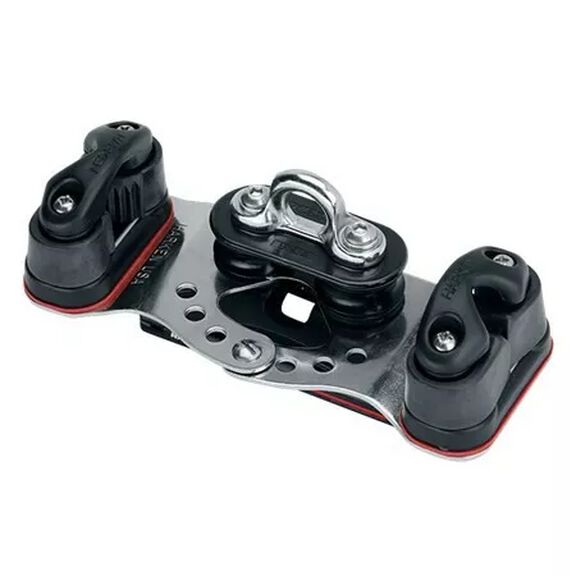

The Harken 22mm High-Load 1250 Car with Fixed Sheaves and Cam Cleats is a precision-engineered traveler car built for demanding small boat applications. Designed for dinghies, keelboats, beachcats, and offshore boats up to 27 ft (8 m), it features a one-piece solid aluminum body with captive ball bearings that roll smoothly even under significant load. The CB (Captive Ball) design means the car rolls on and off the track without spilling bearings, and the open-top return race reduces weight while exposing the balls for easy rinsing.

With a maximum working load of 1,250 lb (567 kg) and a breaking load of 2,500 lb (1,134 kg), this high-load variant is built for performance sailing where sail control under load is critical. The integrated fixed sheaves support 1:1 or 2:1 purchase systems, allowing sailors to fine-tune mainsheet tension directly from the cockpit. Built-in cam cleats secure the control lines at the car for hands-free positioning. CB wire retaining clips and composite corner keepers keep ball bearings captive whenever the car is off the track, preventing loss during rigging or maintenance.

The car body measures 171mm (6¾ in) in length, 80mm (3⅛ in) in width, and 24mm (15/16 in) in height, and weighs 664g (23.41 oz). It supports a minimum curved track radius of 2.03m (6.67 ft), making it suitable for straight and gently curved track installations. This car is intended for use when the mainsheet load is less than 10° from vertical.

Key Features

• Maximum working load: 1,250 lb (567 kg); breaking load: 2,500 lb (1,134 kg)
• One-piece solid aluminum car body — lightweight and strong
• Captive Ball (CB) design — rolls on/off track without spilling bearings
• Fixed sheaves support 1:1 or 2:1 purchase systems
• Integrated cam cleats for hands-free sail control from the cockpit
• CB wire retaining clips and composite corner keepers keep bearings captive off the track
• Open-top return race reduces weight and exposes balls for rinsing
• Compatible with 22mm Small Boat CB track
• Minimum curved track radius: 2.03m (6.67 ft)
• Dimensions: 171mm L × 80mm W × 24mm H; weight: 664g
