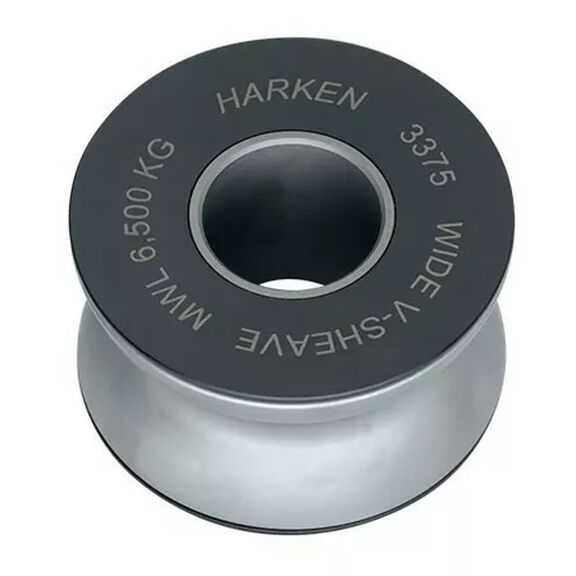

Harken 6.5T V Sheave - Wide Tulip
A high-performance titanium V sheave engineered for demanding marine applications requiring maximum load capacity and reliability. The 6.5T model features angled titanium rollers combined with a sophisticated bearing system that integrates axial and thrust bearings into a single bearing set for optimal performance and durability.
The wide-tulip sheave design accommodates single-line applications with a flexible line-entry range of deflecting angles, making it ideal for rigging systems where directional changes are necessary. Snap-fit Delrin® side covers enable tool-free disassembly for routine maintenance, while the titanium construction ensures excellent strength-to-weight ratio and corrosion resistance in saltwater environments.
Key Features
- Titanium V sheave with angled titanium rollers for superior strength and durability
- Maximum working load: 6,500 kg (14,300 lb)
- Breaking load: 13,000 kg (28,600 lb)
- Sheave diameter: 82 mm (3.25 in)
- Maximum line diameter: 16 mm (5/8 in)
- Width: 45.7 mm (1.80 in)
- Snap-fit Delrin® side covers for easy maintenance
- Integrated axial and thrust bearing system
- Wide-tulip design for flexible rigging applications
- Made in USA
