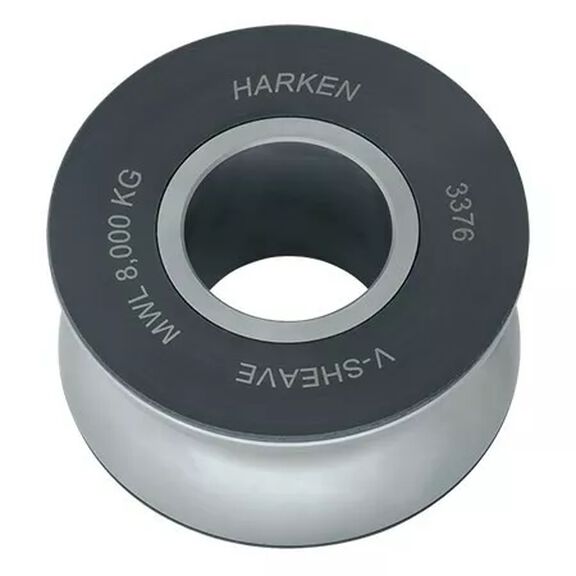

Harken 8T V Sheave - Wide Tulip
The 8T V Sheave with wide tulip design delivers reliable performance for marine sailing applications. This sheave is engineered to handle demanding line loads while maintaining smooth rotation and minimal friction loss.
Key Features
- 8,000 kg (17,600 lb) maximum working load capacity
- 16,000 kg (35,200 lb) breaking load for safety margin
- 104 mm (4 3/32 in) sheave diameter
- Accommodates maximum line diameter of 18 mm (11/16 in)
- 51 mm (2 1/32 in) width with wide tulip design
- 44.82 mm (1.765 in) center pin diameter
- 942 g (33.23 oz) lightweight construction
- Multi-language technical documentation available
Breaking Strength
16000 kg
Safe Working Load
8000 kg
Type
Sailboat Block
Weight
942 g
Width
51 mm
Sheave Diameter
104 mm
