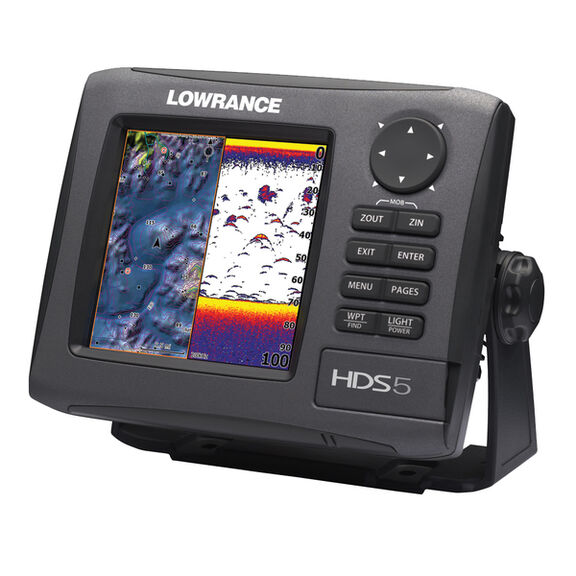

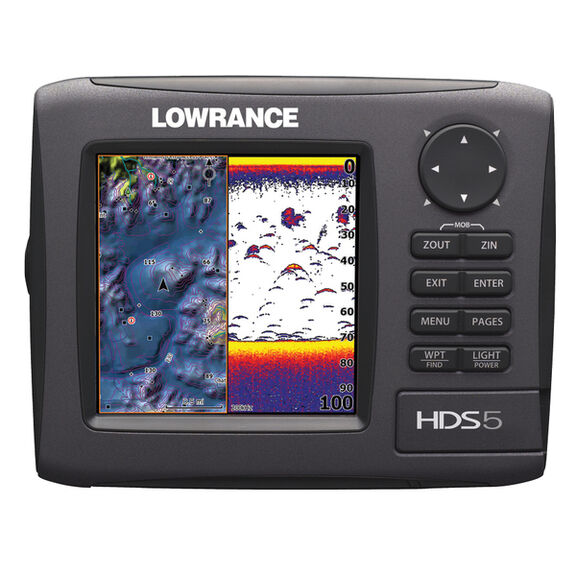

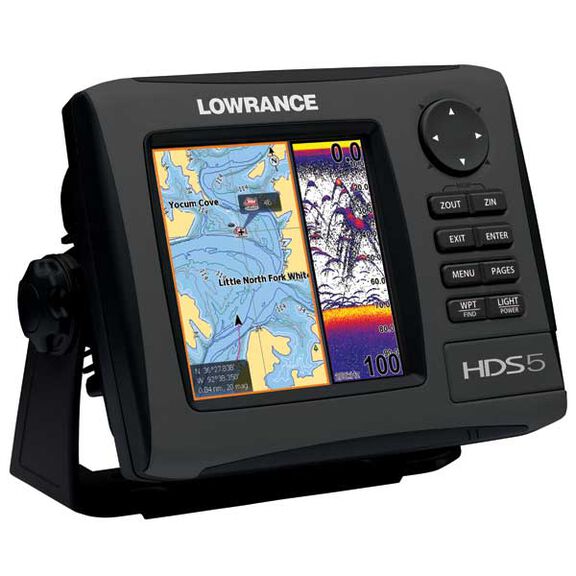

HDS-5 Gen2 Fishfinder/GPS Chartplotter with 50/200kHz Transducer
Model #
12971057
Mfg #
000-10519-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
HDS-5 Gen2 Fishfinder/GPS Chartplotter with 50/200kHz Transducer
Model #
12971057
Mfg #
000-10519-001
−
+
Space-saving fishfinder/chartplotter for the coastal or Great Lakes angler with a high-brightness 16-bit SolarMAX™ display, Broadband Sounder™ technology with Realtime StructureMap™ capability, an internal GPS antenna and high-definition mapping. TrackBack™ feature lets you review sonar history and save waypoints on key locations. NMEA 2000 and high-speed Ethernet networking. Built-in, exclusive Nautic Insight™ US coastal mapping. Add the optional StructureScan™ HD Module to generate StructureMap™ images. Includes 50/200kHz transom-mount transducer.
Features:
- Built-in Broadband Sounder™
- StructureScan® HD sonar module and transducer support; Plus, new StructureMap™ HD capability
- Super-accurate, internal GPS antenna with faster 5Hz update rate; Plus support for optional, external Lowrance Point-1 10Hz GPS antenna/compass
- High-brightness, sunlight-viewable display
- Affordable NMEA 2000 and high-speed Ethernet networking options
- GoFree™ Wireless Technology compatible for wireless viewing sonar and chartplotter displays on tablets and smartphones
- Chart Sharing allows viewing of map data from one chart card across every HDS Gen 2 and Gen2 Touch display on the network, maximizing chart card value
- Insight Genesis™ allows you to create free customised maps based on your own survey data
- Extensive mapping options – HDS Gen2 includes built-in charts or bundled map options, and is compatible with the most expansive selection of cartography on the market; Options include Insight™ HD, Insight™ PRO, Insight Genesis™, Navionics®, C-Map Max-N, TOPO, and more; All charting options can be used with Insight Planner™ PC planning software
- TrackBack™ feature to review sonar history and save waypoints on key locations.
Specs:
- Screen Size: 5"diag.
- Horizontal Pixels: 480
- Vertical Pixels: 480
- Dimensions: 7 3/16"H x 5 11/16"W x 3 1/2"D
- Included Cartography: Nautic Insight
- Optional Cartography: Navionics® Platinum+, Platinum, HotMaps™ Platinum, Lowrance Hot Spots® PRO, LakeMaster® ProMaps (Americas)
- Data Interface: NMEA 2000, NMEA 0183, Ethernet
- Receiver Type: High-sensitivity 16-channel GPS with WAAS
- Waypoints & Routes: 5,000 waypoints, 200 routes and 10 trails
- Transmit Power: Max 32W (RMS actual); 3,750W (RMS analog equivalent)
- Max. Depth: 5,000'
- Waterproof Rating: IPX7
Antenna
Internal GPS Antenna
Cartography
Nautic Insight
Diagonal Screen Size
5"
Dimensions
5 11/16" Width x 7 3/16" Height x 3 1/2" Depth
Display Color
Color
Display Shape
Square
Display Type
Multi-Touch Touchscreen
Frequency
50/200kHz
Maximum Depth
5000'
Mount Type
Tilt & Swivel
Resolution
480 x 480
Specific Transducer
50/200kHz Transom-Mount Transducer (Included)
Warranty
Two Years
