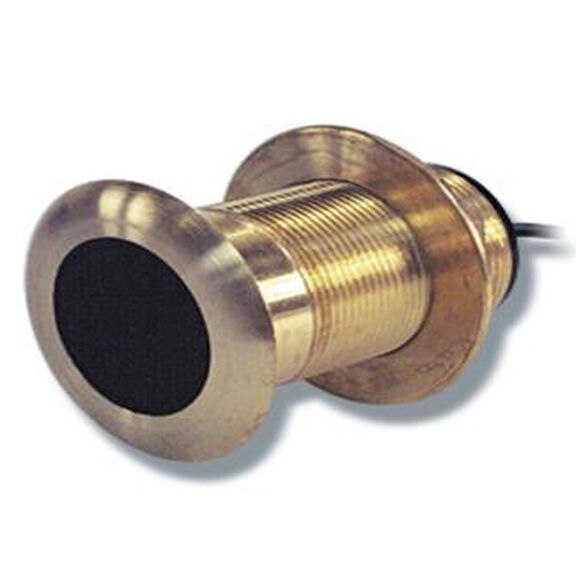

B117 Low Profile Thru-Hull Dual Frequency Transducer
Model #
2703486
Mfg #
E66014
$274.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
B117 Low Profile Thru-Hull Dual Frequency Transducer
Model #
2703486
Mfg #
E66014
$274.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Traditional dual-frequency depth and temperature thru-hull transducer with nearly flush mushroom head design.
Low-profile bronze depth and temperature transducer is compatible with sounder modules like DSM30 and DSM300. It comes with a 30' cable with connector. Suitable for wood and fibreglass hull material.
Key Features
- Nearly flush design minimizes drag with only 3/16" extending outside of the hull
- 50kHz 45°/200kHz 12° beamwidth
- Requires 2" dia. hole for installation
Specifications
- Application: Common in sailboat installations
- Style: Thru-hull
- Cable Length: 30' (9m)
- Hull Deadrise: 0°-8°
- Monitors: Depth/Temperature
- Material: Bronze
- Transmit Power: 600W (RMS)
- Frequency: 50/200kHz
- Max. Depth: 50kHz: 1,200' / 200kHz: 700'
- Element Tilt Angle: 0°
- Beamwidths: 45°/12°
Type
Thru-Hull
Beam
12x45 Degrees
Deadrise Angle
0 to 25 Degree
Frequency
50/200kHz
Material
Bronze
Maximum Depth
1500 Feet
Sonar
Depth
Transmit Power
600 Watts
Type
Thru-Hull
