Class T Fuse Block, 110 - 200 A, Sealed
Model #
21481643
Mfg #
3911
$59.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
ANCOR
$0.89
-
$8.74
Price reduced from
$5.09
to
-
Price reduced from
$49.99
to
ANCOR
$1.12
-
$134.98
Price reduced from
$6.29
to
-
Price reduced from
$192.99
to

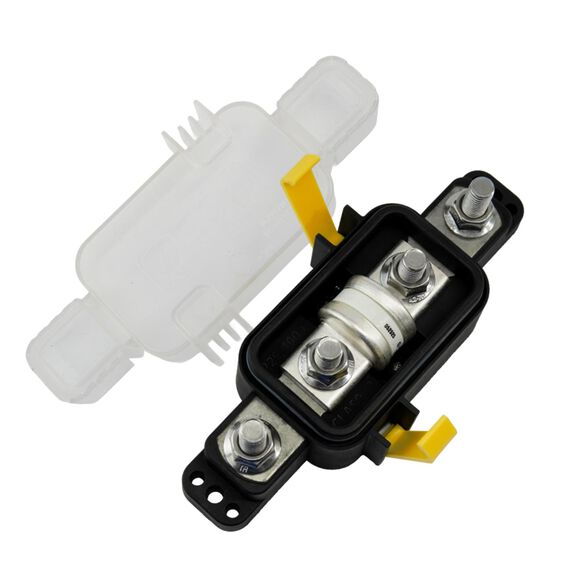

EGIS MOBILE ELECTRIC Class T Fuse Block, 110 - 200 A, Sealed
Waterproof and ignition-protected for harsh environment spaces. Includes protective cover with breakaway tabs. Height compatible with other FLEX system components. Separate Stud Connections for Cable Mounting allow heavier-gauge cables and their terminals to feed in and out of the fuse, rather than land on the fuse tab itself.
Key Features
- Compatible with 110-200A Class T Fuses
- Ignition Protected to support installation in potentially hazardous gaseous environments, such as LPG or in gas boats
- Fully Sealed Provides protection against water (IP66 / IP67 / IP6K9K), Dust, and chemicals
- Stainless-Steel Self-Locking Hardware Ensures long term reliability and ease of installation
- Fuse not included
- Flex System Compatible with Flex interconnected busbars
- Maximum Voltage (Vdc): 80 Vdc
- Maximum Amperage: Supports All Fuse Values
- Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
- Mounting Holes: 4x #10(M5) & 2x 1/4" (M6)
- Cover Material: Clear Polycarbonate
- Base Material: Nylon 6 30% GF
- Ignition Protected: Yes
- Ingress Protection Ratings: IP66, IP67, IP6K9K
- Busbar Material: Tin Plated Copper
- Operating Ambient Temperature Range: -40 C to 125 C
Compatibility
REPLACES BLUE SEA SYSTEMS #5007100
