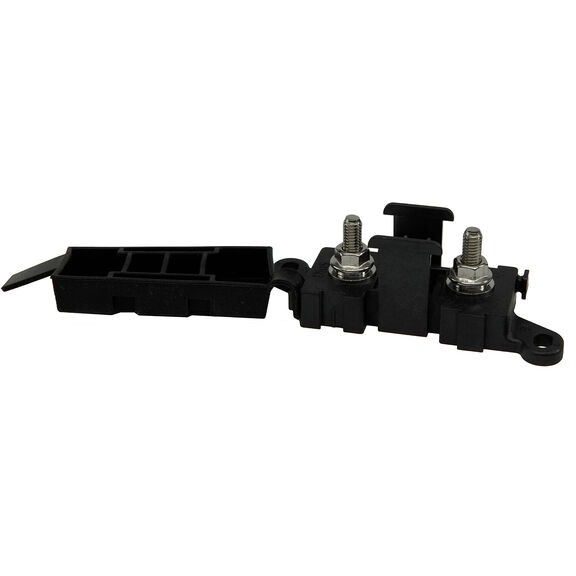

MIDI Fuse Block with Cover
Model #
21481536
Mfg #
3810
$13.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
ANCOR
$0.89
-
$8.74
Price reduced from
$5.09
to
-
Price reduced from
$49.99
to
EGIS MOBILE ELECTRIC MIDI Fuse Block with Cover
Designed for Harsh Environments with a high-temperature composite base and stainless-steel stud and nut hardware for maximum protection against corrosion. Wire Tie Slots in the Base allow optional secure tie-wrap mounting.
Key Features
- 58 Max Vdc Rating easily supports 12, 24, 36, and 48 nominal Vdc systems. Flexible Protective Cover ensures full 360-degree access for cables/terminals to attach to fuse studs, while preventing inadvertent short circuits
- Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments
- Stackable Side by Side design via interlocking dovetail features in the composite base. Supports Common Input Busbars when stacked side-by-side due to longer input stud lengths
- Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on the vehicle
- Flexible Cover: Silicone Rubber
- Base: PPS, UL 94-V0
- Power I/O Terminal Material: Stainless Steel
- Max Operating Temperature: 85 °C (185 °C)
- Min Operating Temperature: -40C (-40C)
- Maximum I/O Stud Temperature: 200 C / 392 F
- Input / Output Stud Size: M5 x 0.8
- Max Fuse Voltage Rating: 48 Vdc Nominal 58 Vdc Maximum
- Maximum I/O Stud Torque: 5 N-m (44 in-lbs)
- Mounting Hole Screw Torque: 2.5 N-m (22 in-lbs)
