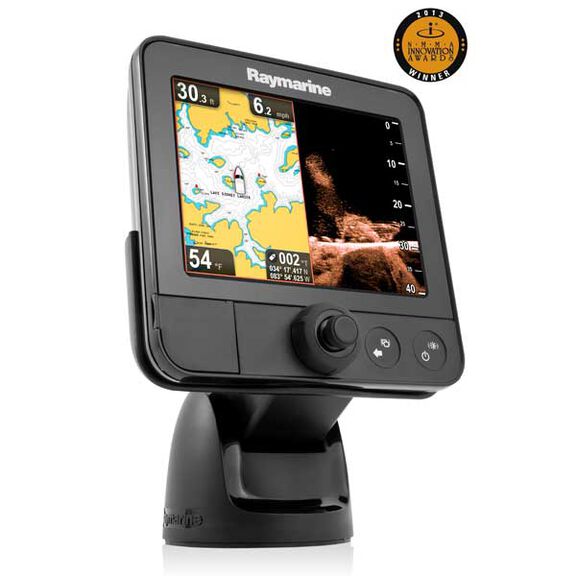

Dragonfly 6 Fishfinder/Charplotter Combo Sonar GPS with Built In DownVision and Transom Mount Transducer
West Advantage Members Earn 3X Points on everything! Not a member? Sign up now

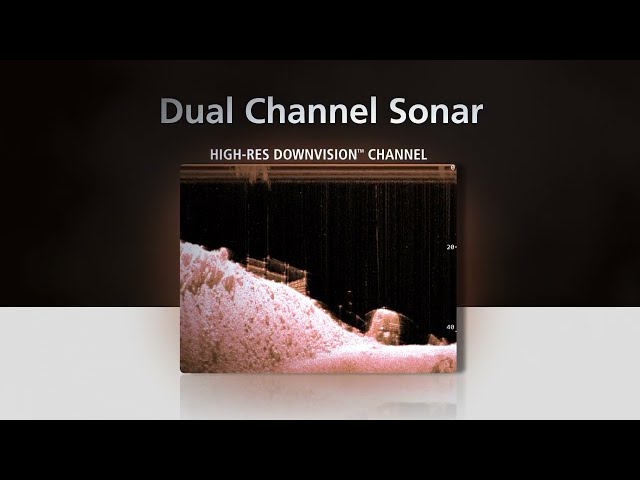

Raymarine’s affordable Dragonfly chartplotter/fishfinder combination allows both inland and coastal anglers the opportunity to utilize ClearPulse™ CHIRP sonar technology. Raymarine ClearPulse CHIRP sonar and a true two-channel transducer (included) dramatically reveals fish and underwater structures utilizing both conventional and Raymarine’s exclusive DownVision sonar. The built-in 50-channel GPS with fast-acquisition technology ensures added navigation confidence and the 5.7" diagonal LED backlit display ensures maximum visibility even in direct sunlight. Quick release swivel bracket included. Thule lock available for added security.
- Display Type: LED backlit, sunlight-viewable
- Screen Size: 5.7"diag.
- Screen Resolution: 640 x 480 pixels
- Display Viewing Angle: 70° left/right/top, 45° bottom
- Optional Cartography: Navionics Silver, Gold, and HotMaps on microSD cards
- Dimensions: 6 7/16"W x 5 11/16"H x 2 3/4"D
- Data Interface: Transducer Port
- Receiver Type: 50-channel internal GPS
- Voltage: 12V (10.2-15.6V DC)
- Included Accessories: Transducer, flush-mount kit, Quick release swivel bracket , power cable
- Transmit Power: Not available at time of publication
- Maximum Depth: Traditional CHIRP sonar: 600'/DownVision: 600'
- Transducer: Transom-mount included
- Waterproof Rating: IPX7
- Warranty: One year
